Define：
1.Use the special DST (Direct Synchronization Torque) motor, instead of the previous complicated V-belt drive system,to drive the flat cam directly, to achieve the obvious improvements like: High efficiency,Energy saving, Low consumption & Low fault.
2.Shuttle unit: adopt idler wheel form shuttle, non-lubrication, low pollution.
3.High precision automatic warp tension control system, it offers good condition for better quality fabric.
4.Electrical control system: adopt the European famous-brand program processor to control the loom, strong function, concentrated control, easy operation.
5.Apply to produce flexible intermediate bulk container(FIBC'S), flat container fabric (U-panel FIBC), tarpaulin, geo-textiles and some other woven fabric.

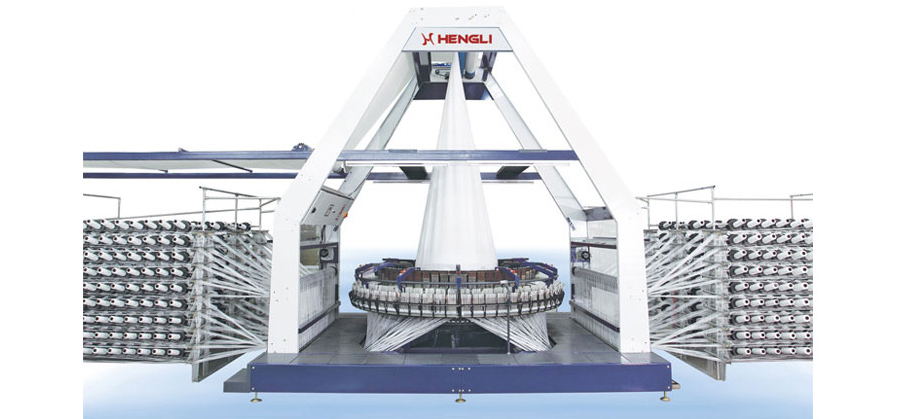

Products PIC :
Technical data :
| Item/Type | SBYZ-2500X10 |
| Number of shuttles | 10 |
| Revolutions(Max.) | 80rpm |
| Weft insertion | 800ppm |
| Working width/double flat | 1800～2250mm |
| Working width/double flat（At reduced pick rate） | 2100～2250mm |
| Number of warp tape | 2500pc |
| Warp/weft core inside diameter | 35mm |
| Warp/weft core length | 218mm |
| Warp bobbin diameter(max) | 160mm |
| Weft bobbin diameter(max) | 115mm |
| Main motor power | 11Kw |
| Warp infeed motor rating | 0.25 Kw×4 |
| Haul off motor rating | 1.1 Kw |
| Winder torque motor rating | 5Nm |
| Max. roll diameter | φ1200mm |
| Dimensions (A×D×B) | 17800×4000×4500mm |
| Weight | 10.8t |
Because of the continuous design improvement, some specification change may not be prior notice.
